Need dependable heating and cooling for a home addition, converted garage, office, studio, guest room, or another difficult-to-condition space? A ductless mini-split may provide targeted comfort without extending a central duct system.
Modern Air of Katy provides professional ductless mini-split installation throughout Spring Branch, Memorial, Briar Forest, the Energy Corridor, Westchase, West Houston, and nearby Katy.
We evaluate the space, calculate its heating and cooling needs, explain the available system options, and recommend equipment that fits the application and budget.
Single-zone and multi-zone systems • Mini-split heat pumps • Proper equipment sizing • Professional installation
A ductless mini-split uses an outdoor unit connected to one or more indoor units. Refrigerant lines, control wiring, and condensate drainage connect the equipment through a relatively small wall opening.
Each indoor unit conditions its assigned room or zone without requiring a traditional supply-and-return duct system.
A mini-split may be a practical option when:
The space has no existing ductwork
Extending central ductwork would be difficult
Existing ducts cannot support the additional load
A room needs independent temperature control
A detached space needs its own HVAC system
One area has different operating hours from the rest of the home
A home addition needs dedicated heating and cooling
A central-system replacement would not solve a single-room problem
Ductless equipment is not automatically the best answer for every uncomfortable room. We first consider the space, existing HVAC system, insulation, air leakage, electrical service, construction, and intended use.
An addition may have heating and cooling requirements that were not included in the original central HVAC design.
Extending existing ductwork may reduce airflow to other rooms or exceed the central system’s available capacity. A properly sized mini-split can serve the addition independently when that approach is more practical.
A garage conversion may need dedicated heating and cooling, but the space should be evaluated for insulation, air sealing, windows, doors, ceiling conditions, electrical capacity, and applicable building requirements.
A mini-split cannot correct inadequate insulation or uncontrolled outdoor-air leakage by itself.
A home office may need cooling during hours when the rest of the house requires little conditioning. Independent temperature control can allow the office to operate separately from the central system.
Detached buildings often cannot be served conveniently by the home’s central ductwork. A mini-split may provide dedicated heating and cooling when electrical, drainage, structural, and installation conditions are appropriate.
A ductless system may supplement an upstairs bedroom, bonus room, or other difficult-to-cool space.
However, the underlying problem may involve damaged ductwork, weak airflow, inadequate return air, insulation, or central HVAC performance. Those conditions should be evaluated before installing supplemental equipment.
A ductless system may provide heating and cooling without installing a large conventional duct system throughout the home.
The number of rooms, desired indoor-unit placement, electrical requirements, and project cost should be considered when comparing ductless and ducted options.
A mini-split may serve an enclosed sunroom when the structure is suitable for conditioned use. Large windows, direct sunlight, limited insulation, and air leakage can significantly affect the required capacity.
Workshops may need dedicated temperature control, but dust, fumes, equipment heat, ventilation, and the intended activities should be considered before selecting residential ductless equipment.
A mini-split is not always the most practical choice.
Another solution may be more appropriate when:
Existing ductwork can be extended effectively
The central HVAC system only needs repair
A damaged duct is causing the comfort problem
The homeowner does not want visible indoor equipment
Numerous small rooms would require many indoor units
The space has significant insulation or air-leakage problems
Suitable condensate drainage is not available
Electrical upgrades make the project impractical
Equipment placement would create access or appearance concerns
The entire central HVAC system already needs replacement
We compare the practical options before recommending a ductless installation.
Explore Central AC Installation in Houston
Learn About HVAC Ductwork Repair and Installation

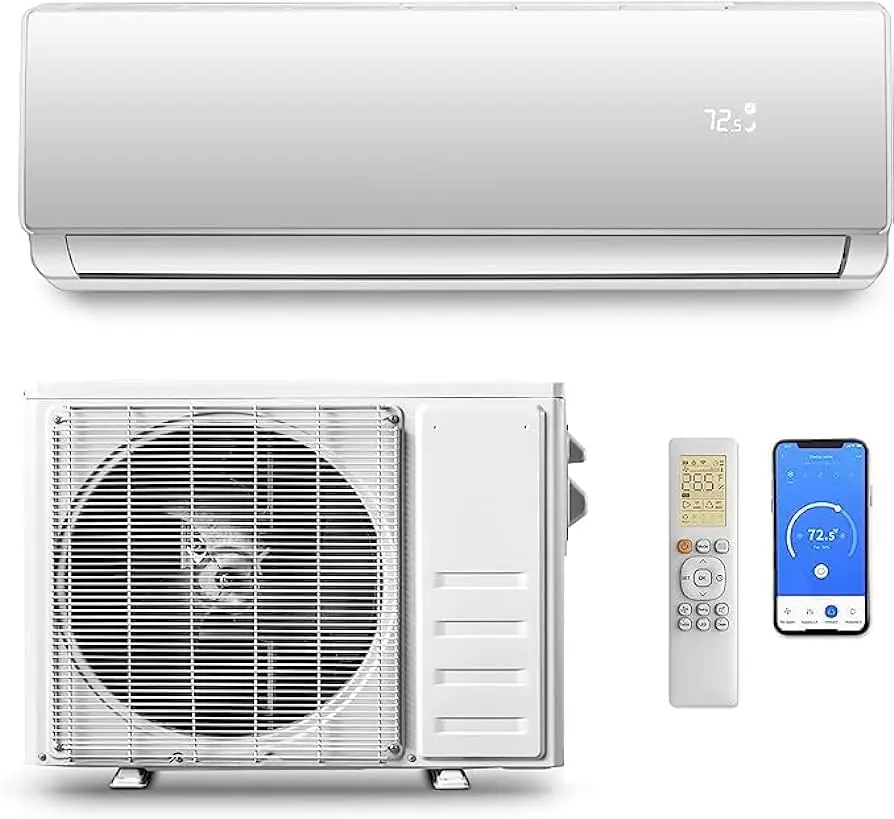

A ductless system contains several primary components:

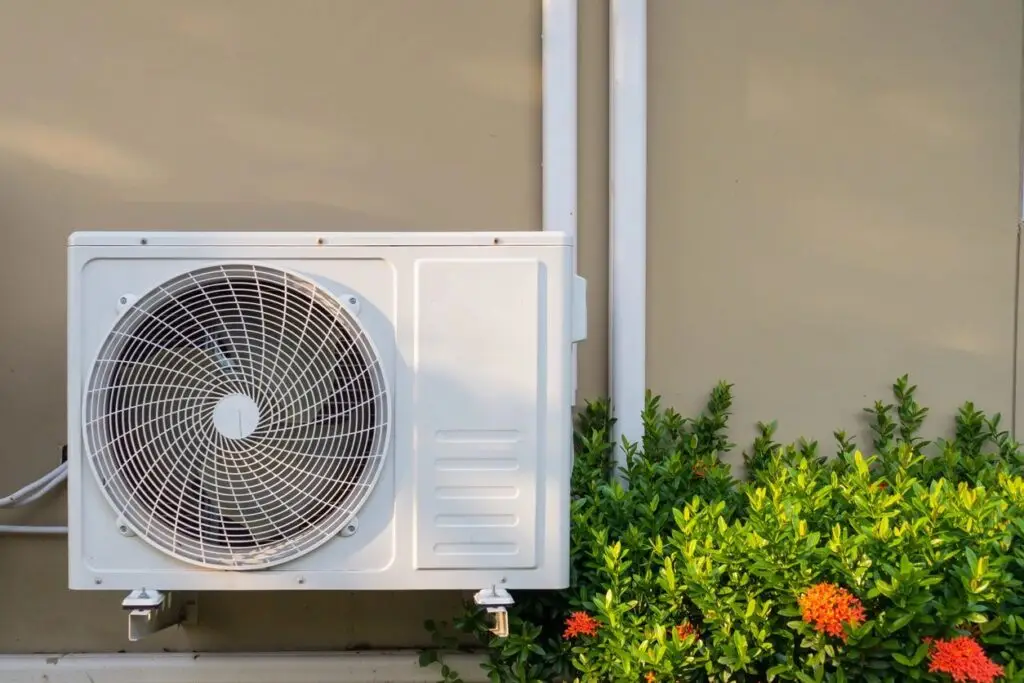

Outdoor condenser or heat-pump unit
One or more indoor air-handling units
Refrigerant line set
Control and communication wiring
Condensate drain
Electrical disconnect and power supply
Wall sleeve and weather-sealed penetration
Outdoor pad or mounting bracket
Remote control, wall controller, or compatible thermostat
In cooling mode, the system absorbs heat from the indoor air and transfers it outside.
A mini-split heat pump can reverse this process to provide heating. Some systems also offer dehumidification, fan, scheduling, or connected-control features.
Available functions vary by manufacturer and model.
A multi-zone design requires careful consideration of:
Individual room loads
Combined system capacity
Simultaneous use
Indoor-unit selection
Refrigerant-line lengths
Equipment compatibility
Outdoor-unit operating ranges
Multiple single-zone systems may sometimes provide better flexibility or redundancy than one multi-zone system. We explain the tradeoffs for the specific project.
A multi-zone system connects multiple indoor units to one outdoor unit. Each indoor unit serves a separate room or zone.
A multi-zone system may be appropriate for:
Several rooms without ductwork
Multiple additions or finished areas
Homes needing separate temperature zones
Spaces with different occupancy schedules
Although indoor zones can be controlled separately, they share the capacity and operating limits of the connected outdoor unit.
A single-zone system connects one indoor unit to one outdoor unit. It is commonly used for:
One home addition
A converted garage
A detached office
A single bedroom
A workshop
One persistently uncomfortable room
Single-zone systems can provide straightforward independent control for one space.
Single-zone mini-splits
Multi-zone mini-splits
Heat pump mini-split systems
Garage and addition cooling systems
High-efficiency inverter systems
Modern systems offer high efficiency and flexible zoning options for different room layouts.
2 Seasonal Tune-Ups (1 AC in Spring) (1 Heating in Fall)
Full system inspection on each visit
24 Hour Priority Service
Free repair service call and diagnosis
Up to 20% Discount on Service or Repair
1st Year Discount is 10%
2nd Year Discount is 15%
3rd Year Discount is 20%
$100.00 credit per year towards system replacement
Get efficient, quiet heating and cooling with professional mini-split installation.
Are ductless mini-splits energy efficient?
Yes. Ductless systems are highly efficient and allow precise temperature control without energy loss from ductwork.
Can a ductless system heat and cool my home?
Yes. Many ductless systems provide both heating and cooling, making them a versatile year-round solution.
How many rooms can a ductless system serve?
Systems can be designed to serve a single room or multiple zones, depending on your needs.
Do ductless systems require maintenance?
Yes. Regular maintenance helps ensure efficient operation and long system life.
